Increasing the compressor station capacity in the Kotouč Štramberk area
Subject of realization

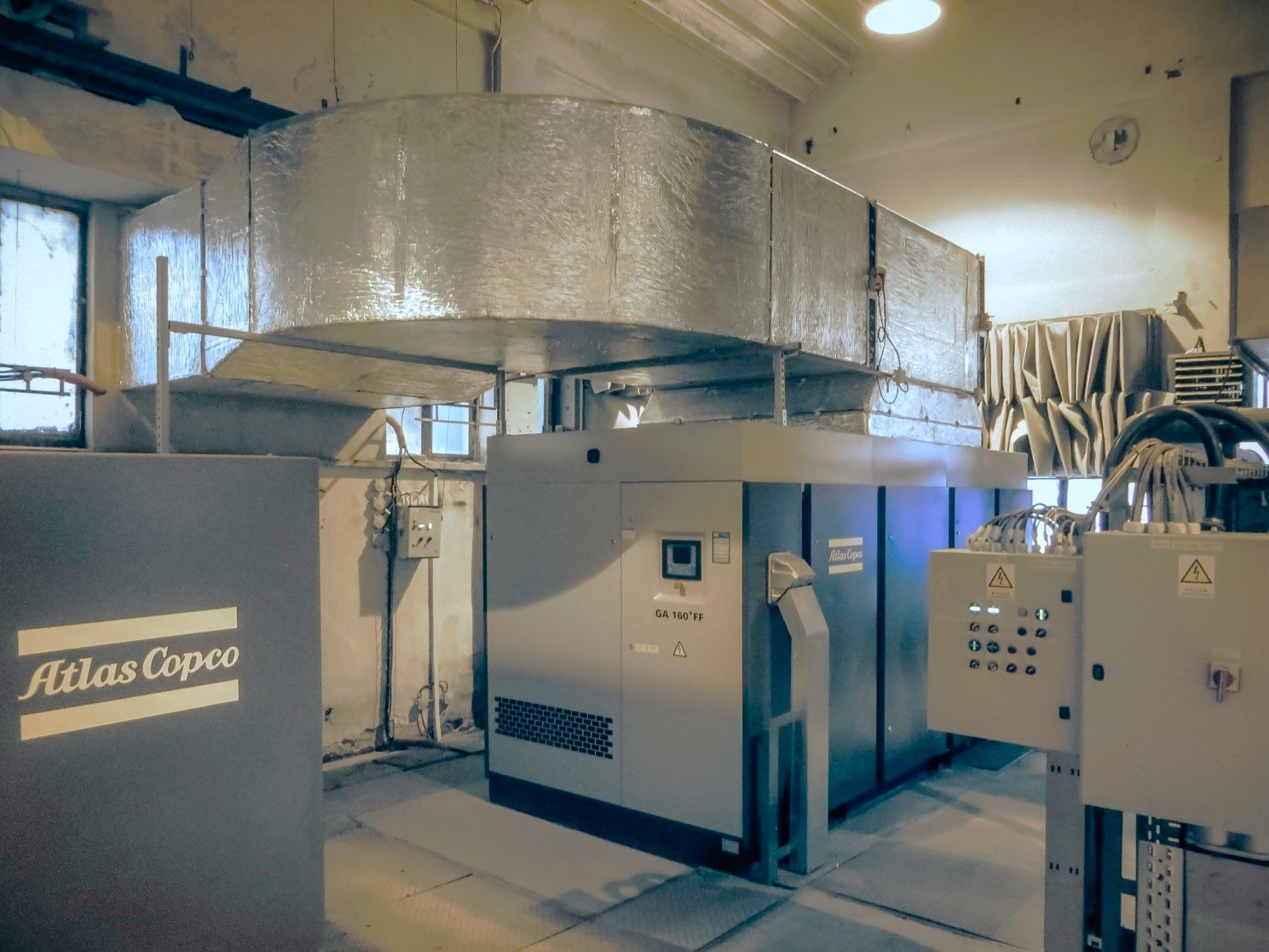

Commissioning a new source of pressurized air, Atlas Copco GA 160+ FF compressor (single-stage screw compressor with oil injection driven by an electric motor, compressors are enclosed in a soundproof cabinet with a noise level of 73 dB (A), automatic compressor unit has a capacity of 32.3 min at a discharge overpressure of 7 bar and power input of 160 kW)
Compressors include condensing dryers
The new compressor is driven by an extension of the existing superior system and is also controlled by it.
The work also included a connection to the existing pressurized air piping, supply and installation of air conditioning, adjustment of compensation, and MV and LV substations
A turnkey order, including the design of the optimal solution, processing of project documentation, and subsequent implementation
